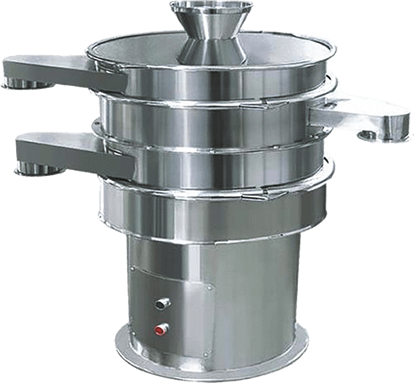

Sifting is a beginning of formulation process; better sifting is a positive sign for future process that can be achieved through our Sifter. This sifter is manufactured as per the set industry norms using quality approved components and modern technology. In line with international quality standards.
- In compliance with cGMP guidelines with Low capital cost.
- Machine are designed on the principle of gyratory motion generated by double eccentric weight mounted on two ends of the shaft of vertically mounted specially designed vibro motor.
- Continuous feed – Continuous Discharge
- Noiseless, Maintenance free & high-speed machine.
- Silicon moulded lead-free sieves.
- All contact parts and screen of AISI stainless steel 316 material.
- AISI stainless steel 316L quality contact parts optional.
- Standard machine is with non-flame proof motor explosion proof
- Flame Proof Construction
- Variable Frequency Drive
- Extra Sieves
| Model / Size | Sifter 12” | Sifter 20” | Sifter 30” | Sifter 36” | Sifter 48” |
| Screen Diameter [MM] | 300 | 500 | 750 | 915 | 1220 |
| Output [Kg/Hr] * | 5 to 20 | 20 to 100 | 30 to 200 | 40 to 300 | 50 to 400 |
| Motor [HP] | 0.25 | 0.5 | 0.5 | 1.o | 2.0 |
