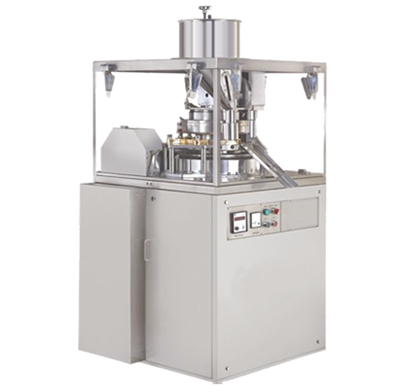

Single Rotary Tablet Press – NCD4

Single Rotary Tablet Press

Square cGMP Model
Machine is having C.1. Body & C.1. middle plate
Paint free tablet manufacturing zone
Excellent and Operator friendly material feeding system
Lower Guards of polished stainless steel
Upper Guards of transparent acrylic material
Electronic / Digital, Tablet cum RPM counter
Turret of Special grade SG Iron Casting.
Lower Punch wiper seal to prevent lower punch jamming
Higher turret speed 17 to 40 RPM
Upper punch penetration system
Interlock switch to all upper guards
Variable speed Pulley
One shot lubrication system
Double sided lifting cams
Anti-Vibration mounts
Available with Electromagnetic Clutch

3 Pc. turret with S.S 316 Die Pot
Pre. Compression arrangement
Rotary Force Feeder system with VFD
PLC Controls with touch screen
Auto Lubrication

Machine Type	NCD4-16	NCD4-20	NCD4-23
Number of Station	16	20	23
Type of Tooling	“D”	“D”	“DB”
Output -Tablet/Hr.*	13,440 to 40,320	16,800 to 50,400	19,320 to 57,950
Max. Operating Pressure	10 Tons	10 Tons	10 Tons
Max. Tablet Dia.	25 mm	25 mm	16 mm
Max. Depth of fill	20.5 mm	20.5 mm	17.5 mm
Upper Punch Penetration	1.5 – 8 mm
Main Electric Motor	3 HP/2.2 kW, 3 Phase, 1440 RPM, 415V, 50 Hz.
Overall Dimensions(mm)	1040 (L) X 910 (W) X 2150 (H)
Net Weight	1150 Kg
