The coating of tablets is a crucial stage in the manufacturing process. The pharmaceutical business requires products which is capable of meeting exacting requirements for enteric coatings, controlled release coatings, and the inclusion of an active ingredient in addition to colouring and taste-masking needs. We at Neocorp have achieved our fair share of milestones in the fabrication of equipment that stands out in terms of performance and efficiency thanks to our significant experience in machine manufacturing in the pharmaceutical industry and our position as the leading tablet coating machine manufacturer. One specific area of our knowledge is our tablet coating machine.
Our rich clientele consists of many medicinal enterprises which are tablet manufacturers in India. The tablet coating machine is made to coat tablets uniformly with an organic solvent, or an aqueous coating. On a bed of tablets that is constantly moving, the coating substance is applied. There is a technique that uses a hot air current to assure quick solvent clearance as well. Products that need to be coated are put inside a closed drum that rotates continuously. To prevent extra coating material from depositing on the tablets, the coating system evenly distributes the coating material while it rotates.
The tablet coating machine that Neocorp designs is easy to run hygienically and keeps a clean atmosphere. It also has energy-saving features. Built from a corrosion-resistant type of material, ensuring continued tablet coating operations and lowering wear-out expenses.
An automated control system is available to monitor our tablet coating machine’s numerous processes and to adjust temperature, pressure, and speed. The electric motors make it easier for the tablet coating machine to perform functions like mixing, creating pressure, and blowing air. The control panel’s user-friendly interface makes it easier to observe and input controls.

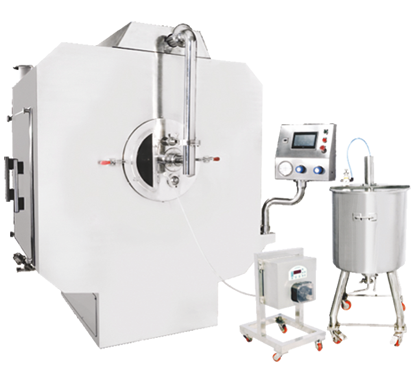

When hot air is forced through the tablets to dry them, the guide plate enables the tablets to tumble smoothly. The spraying system consists of a nozzle, a tank, and a pump. The tank and pump hold the tablet coating solution and provide atomization stability. The coating solution’s preparation is facilitated by the coating preparation tank. Our practices as a tablet machine manufacturer comprise the hard work of every person at Neocorp.
| Model / Size | Coating 12 | Coating 18 | Coating 24 | Coating 36 | Coating 48 | Coating 60 |
| Capacity (Kg) | 2 | 7 | 17 | 65 | 100 | 320 |
| PAN Diameter (mm) | 300 | 458 | 610 | 915 | 1220 | 1575 |
| PAN Motor HP | 1 | 1 | 2 | 3 | 5 | 7.5 |
| C.F.M. | 500 | 850 | 1100 | 1500 | 2500 | 4500 |
