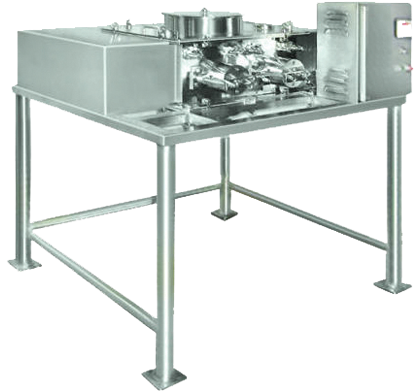

Oscillating granulator is used for gentle homogenization, size reduction, grading and sieving of dry, sensitive powders and granules in pharmaceutical, chemical and food industries.
- Design is cGMP – Current Good Manufacturing Practices compliance
- All contact parts AISI 316 & non-contact parts AISI 304
- Size reduction mill in a vacuum rated design
- Detachable sieve design to accommodate user’s requirements
- Equipment is designed on trolley with PU castor wheel for ease of movement
- Flame proof motor and Push Button Station.
- Inline granulation with Roll compactor & Tipper with FBD Bowl.
| Model / Size | OG 250 | OG 500 |
| Output Capacity | Up to 250 Kg/Hr. | Up to 500 Kg/Hr. |
| Oscillating Speed | 180/Min. | 180/Min. |
| Motor | 2 HP | 2 Hp x 2 Nos. |
| Power | 1.5 Kw/ 3 ph./ 415V/ 50 Hz | 3 Kw/ 3 ph./ 415V/ 50 Hz |
