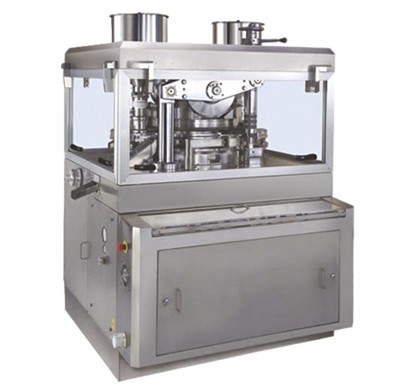

High Speed Tablet Press – NCPress-II

High Speed Tablet Press – NCPress-II

Compliance with cGMP Standard
Higher output suitable for large batch production
Inter locked guards, for safety,
Helical gear ring, to drive the turret, SS 316 Contact Parts
Easily removable bottom driven rotary force feeders
ACVF Drive for Main motor & also ACVF Drive for Feeder Motors
Electromagnetic Clutch
All the tablet parameters can be set from outside of the tableting zone.
Accumulator Cylinder for pressure loading and overload Release
Continuous lubrication Pump for Turret Helical Gear & Pinion
One shot Lubrication pump is provided for lower roll pins
Lower Punch seals in Turret.
3 Types of Filling cams
Upper punch penetration
Round hopper with butterfly valve
Upper & lower pressure rolls fitted with ball bearings
Hydraulic gauge is provided on lower guard for easy view
Single PCS Turret
Acrylic upper guards & SS Lower Guards

PLC Controls with HMI Touch screen interface.
Powder level sensor at Feed Hopper.
Tablet Rejection on Machine start up and stop and random sampling device
Gravity Feeding System
Bi-layer tablet facility
3 Pcs Turret with Electroless Nickel Plating & S.S. 316 Die Plate.
Hydraulic Power Pack

Machine Type	Press-II 37	Press-II 45	Press-II 55	Press-II 61
Number of Station	37	45	55	61
Type of Tooling	“D”	“B”	“BB”	“BB”
Output -Tablet/Hr.*	44,400 to 222,000	54,000 to 324,000	66,000 to 396,000	73,200 to 439,000
Max. Operating Pressure	10 Tons	6.5 Tons	6.5 Tons	6.5 Tons
Max. Tablet Dia.	25 mm	16 mm	11 mm	11 mm
Max. Depth of fill	20.5 mm	17.5 mm	17.5 mm	17.5 mm
Upper Punch Penetration	3 to 6 mm
Main Electric Motor	7.5 HP/5.5 kW, 3 Phase, 1440 RPM, 415V, 50 Hz
Force Feeder Motor	0.25 hp/0.18 kw x 2 nos.
Total Power Consumption	9.5 HP / 7 kW
Overall Dimensions(mm)	1485 (L) x 1430 (W) x 1750 (H)
Net Weight	2700 Kg
