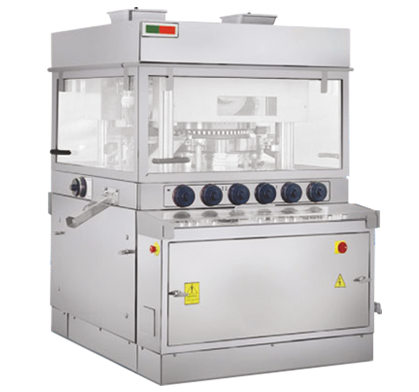

High Speed Tablet Press – NCPress-IV

High Speed Tablet Press – NCPress-IV

In Compliance with cGMP Standard
Higher output suitable for large batch production
Inter locked guards for safety, Hopper level sensors, Helical gear ring to drive the turret
Pre-compression, as a Standard Feature.
Easily removable bottom driven rotary force feeders
ACVF Drive for Main motor & also ACVF Drive for Feeder Motors
Electromagnetic Clutch, Acrylic carbonate upper guards & SS Lower Guards
Front Controls at outside of the machine, having SEIKO dials
Hydraulic power pack for pressure loading and overload Release
One Shot lubrication
Lower Punch seals in Turret
3 Types of Filling cams
All the tablet parameters can be set from outside of the Tableting zone
Bottom Driven Rotary Feeding System.
SS. Hopper with Imported Butter fly Valve

Tablet Rejection on Machine Start up and Stop and random sampling device
Powder Level Sensors at Feed Hopper
Tight Punch Detection (Upper Punch)
PLC With HMI & Colour Touch Screen Gravity Feeding System
Bi-layer tablet facility
Tablet Sampling
Auto Lubrication
PLC With Fully Computer Control system CFC (SCADA) System
Auto Rejection and Random Sampling Device.
Power Loading System

Machine Type	Press-IV 45	Press-IV 55	Press-IV 69	Press-IV 75
Number of Station	45	55	69	75
Type of Tooling	“D”	“B”	“BB”	“BB”
Output -Tablet/Hr.*	65,000 to 324,000	79,000 to 396,000	99,000 to 497,000	108,000 to 540,000
Max. Operating Pressure	10 Tons	6.5 Tons	6.5 Tons	6.5 Tons
Max. Compaction force-Pre	1 Ton
Max. Tablet Dia.	25 mm	16 mm	11 mm	11 mm
Max. Depth of fill	20.5 mm	17.5 mm	17.5 mm	17.5 mm
Upper Punch Penetration	3 to 6 mm
Main Electric Motor	10 HP/7.5 kW, 3 Phase, 1440 RPM, 415V, 50 Hz
Feeder Motors (2 Nos.)	0.25 hp/0.18 kW / 1440 RPM / 415 V
Total Power Consumption	11.7 HP / 8.75 kW
Force Feeder Motor-Option	0.25 hp/0.18 kW x 2 nos
Overall Dimensions(mm)	1500 (L) x 1580 (W) x 1900 (H)
Net Weight	3800 Kg
