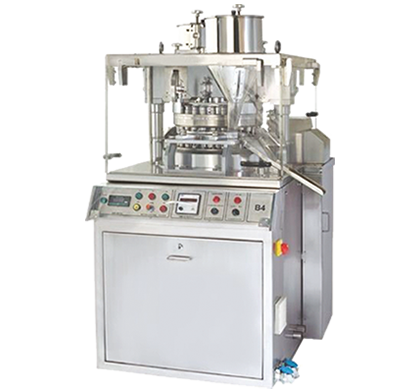

Double Roatry Tablet Press - NCB4
Salient Features
Optional Features
Technical Specification
Square Gmp Model
AC variable drive & Electromagnetic clutch
Machine is having SG iron casted body & middle plate
Paint free tablet manufacturing zone
Lower Guards of polished stainless steel
Upper Guards of transparent acrylic material
Digital Tablet cum RPM counter
Turret of Special grade C.I. Casting
Higher turret speed 17 to 40 RPM
Upper punch penetration system
Interlock switch to all upper guards & flywheel
Variable speed Pulley
One shot lubrication system
Double side lifting cams
3 Pc. turret with S.S 316 Die Pot
Rotary Force Feeder system with VFD
Two-layer tablet attachment
PLC Controls with touch screen
Auto Lubrication system
Machine Type
NCB4-27
NCB4-35
NCB4-45
Number of Station
27
35
45
Type of Tooling
“D”
“B”
“BB”
Output -Tablet/Hr.*
54,000-1,29,000
70,000-1,68,000
90,000-2,16,000
Max. Operating Pressure
10 Tons
6.5 Tons
6.5 Tons
Max. Tablet Dia.
25 mm
16 mm
11 mm
Max. Depth of fill
20 mm
17.5 mm
17.5 mm
Upper Punch Penetration
3 to 6 mm
Main Electric Motor
5 HP / 3.7 kW, 3 Phase, 1440 RPM, 415V, 50 Hz.
Force Feeder Motor-Option
0.25 hp/0.18 kW x 2 nos.
Overall Dimensions(mm)
1980 (L) X 1830 (W) X 1988 (H)
Net Weight
1400 Kg
