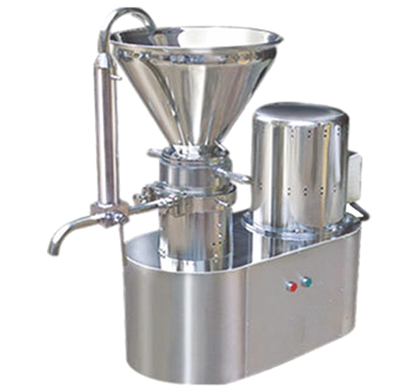

A colloid mill is a machine that is used to reduce the particle size of a solid in suspension in a liquid, or to reduce the droplet size of a liquid suspended in another liquid. This is done by applying high levels of hydraulic shear to the process liquid.
- Design is cGMP – Current Good Manufacturing Practices compliance
- All contact parts AISI 316 & non-contact parts AISI 304
- Easy to adjustment gap between rotor and stator
- Three-way cock assembly with re-circulating pipe
- Easy to Moveable and dismantle all contact parts for cleaning
- Silicon food grade seal
- Horizontal / Vertical Drive
- Water cooling system
- Flame Proof Electrical
| Contact Parts | SS 316 |
| Output Capacity | 145 to 1400 Ltr. / Hr. (Depends on Material) |
| Hopper Capacity | 20 litters |
| Grinding Accuracy | 5-10 Microns (Depends on Material) |
| Motor | 5 HP |
